Monitoring Processes Filters Page

The Monitoring Process Filters are used to allow the Live Monitoring technology to skip the changes performed by certain processes. This prevents unnecessary changes from being included into a deployment package based on monitoring results. To configure the Monitoring Process Filters open the program preferences using the Preferences button from the Application Menu and click the Monitoring Process Filters link on the navigation bar on the left of the Preferences dialog within the Filters group Pic 1.

Configuring Monitoring Process Filters

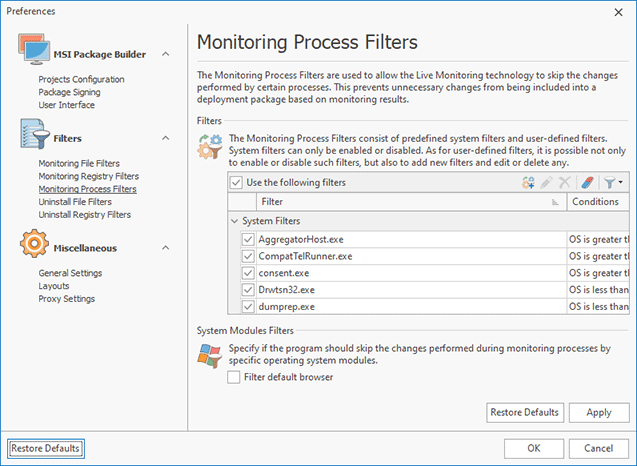

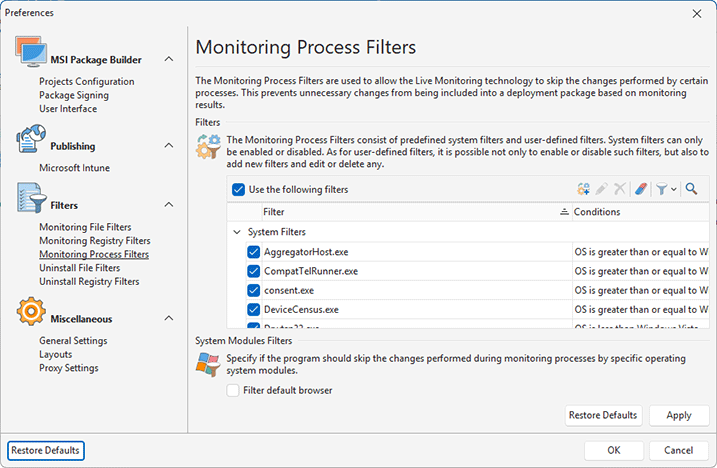

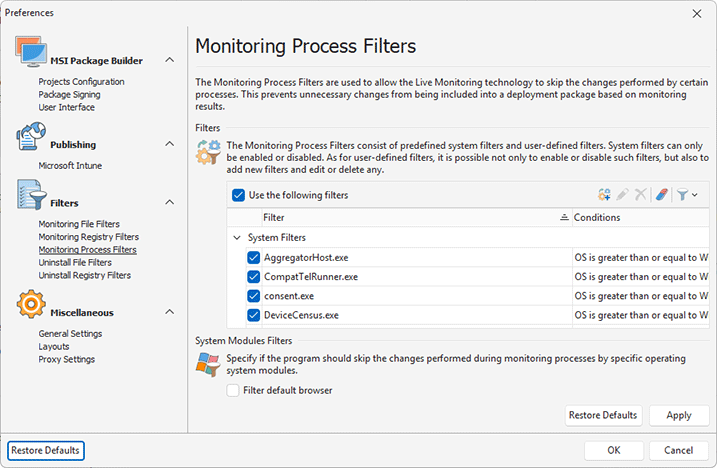

Pic 1. Configuring Monitoring Process Filters

The filters are divided into two categories; those are User Filters and System Filters. The system filters are predefined ones and cannot be deleted, but can be disabled, if required, using the Disable Selected item from the pop-up menu. You can then re-enable any filter using the Enable Selected menu item. To enable/disable a filter and to check if it is enabled, you can use the check boxes located on the left of each row representing the filter. It is also possible to refuse filtering processes by disabling the Use the following filters option.

Toolbar Overview

Add Filter

Add Filter

The Add Filter button should be used to add a new user-defined Monitoring Process Filter.

Edit

Edit

The Edit button allows you to change the selected user-defined Monitoring Process Filter.

Delete

Delete

The Delete button allows you to delete the selected user-defined Monitoring Process Filter items.

Clear User Filters

Clear User Filters

The Clear User Filters button should be used to delete all user-defined Monitoring Process Filter items.

View Mode

View Mode

The View Mode button is intended to show only the filters that meet specific criteria. You may show all the filters, the filters applicable for the current OS only, or specify a custom criterion for filters.

As for the user filters, those are the user-defined ones. To add a new filter, use the Add Filter item from the pop-up menu or press the Add Filter button on the toolbar.

Configuring a Monitoring Process Filter

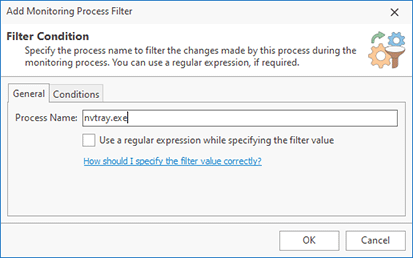

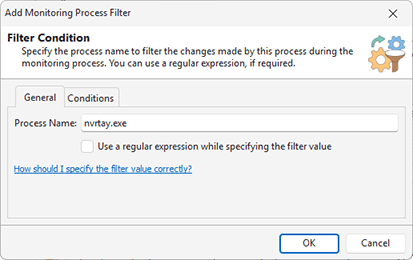

Pic 2. Configuring a Monitoring Process Filter

When configuring a Monitoring Process Filter Pic 2, you should define a process name to be filtered. All changes performed by the specified process are ignored during a monitoring. If you enable the Use a regular expression while specifying the filter value option, you can define a filter that will exclude changes by all processes which names are matching the expression from monitoring results. See the How should I correctly specify the filter value? section of this document for a detailed description of possible values.

A filter can be used in specific environments if you configure conditions for it. On the Conditions tab Pic 3 you can specify the Operating System, the Build Number (of the OS) and the Platform where the filter should be applied. You can use one or multiple criteria together with the comparison operators to specify environments for the filter. If you specify a condition, you can see its value in the filters list. Using conditions can be helpful if you plan to perform monitoring on different OSs so that you can configure OS/platform-specific filters, if required.

Configuring OS and platform conditions

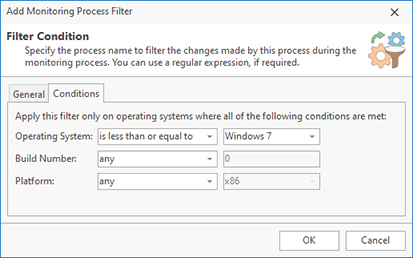

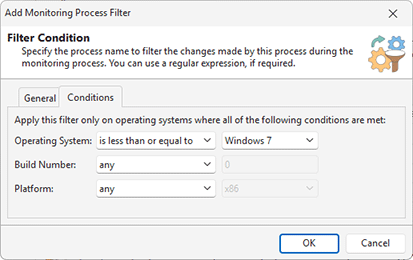

Pic 3. Configuring OS and platform conditions

To edit a user-defined Monitoring Process Filter select it in the filters table and choose the Edit menu item from the pop-up menu or press the Edit button on the toolbar. The filter editing process is similar to the above-stated creation process. To delete the user-defined filters that are no longer needed, you can select those items in the filters table and choose the Delete menu item from the pop-up menu or press the Delete button on the toolbar. It is also possible to delete all user-defined filters using the Clear User Filters menu item and the corresponding button on the toolbar.

In addition to using the generic process monitoring filters, you are suggested to define if the changes performed by specific system modules should be filtered or not. Currently, you can choose if the activity of a default browser should be taken into account during the monitoring process using the Filter default browser option.
