Registry Scan

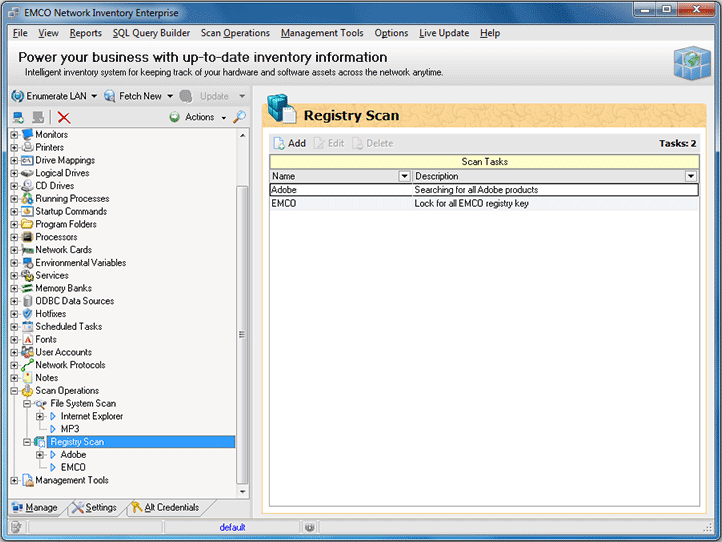

Registry scan feature of Network Inventory provides you with an ability of searching for the Windows registry items matching a defined criteria any time you want. Registry scan capabilities can be accessed by selecting the Registry node under the Scan Operations node of the Machine Tree. The Registry Scan area will appear on the right of the application screen showing you the list of scan tasks. Pic 1 This part will guide you through creating, configuring and executing custom Registry Scans.

Registry scan tasks list

Pic 1. Registry scan tasks list

Creating a Registry Scan

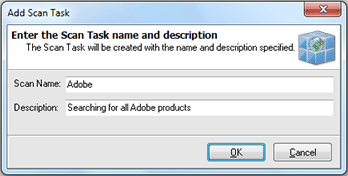

To create a new registry scan select Registry Scan node under the Scan Operations node of the Machine Tree and press Add button on the tool bar of the Registry Scan area. The Add Scan Task dialog will appear on the screen. Pic 2

Creating a Registry Scan

Pic 2. Creating a Registry Scan

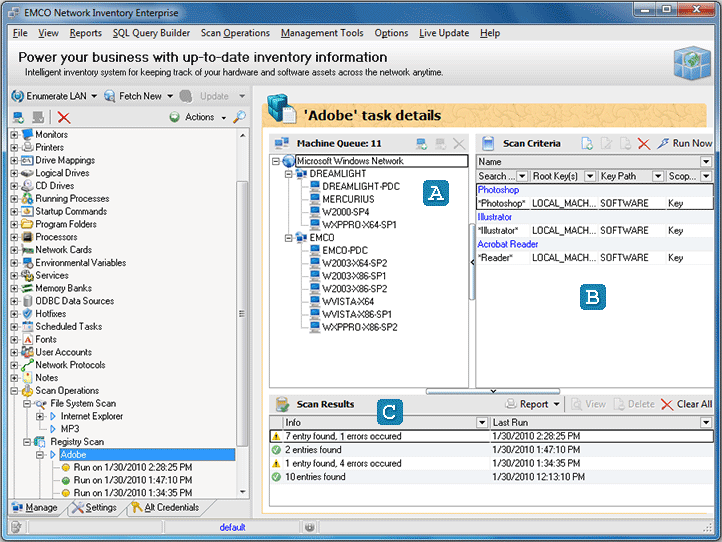

In the Add Scan Task dialog you are proposed to provide a scan name and description. The scan created will contain the criteria to match and the Machines to scan for the items matching the criteria along with the scan results. You can then execute this scan as many times as you want. When you are ready with filling the data required press OK button to proceed. When the task is added the view is automatically switched to the task configuration. Pic 3 In the Task Details area you are to specify a criteria, Machines to take part in scan and review scan results.

The task details area

Pic 3. The task details area

The Tasks Details area consists of three parts. These are the Machine Queue A, Scan Criteria B and Scan Results C panes. The Machine Queue pane shows you the Machines to take part in the scan task, the Scan Criteria pane manages the list of criteria to be used for scan task and Scan Results pane contains the list of task execution results.

Adding Machines to scan

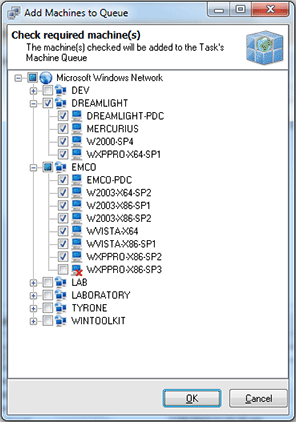

When the scan is created you can define Machines to be scanned. These Machines are displayed within the Machine Queue pane. To add the Machine press Include Machine(s) button on the tool bar of the Machine Queue pane. The Add Machines to Queue dialog will appear on the screen. Pic 4

Selecting Machines to scan for registry items

Pic 4. Selecting Machines to scan for registry items

In the Add Machines to Queue dialog you are to check the Machines to participate in scan from the available network structure. After checking these press OK button to proceed. The Machines you have checked are now added to the Machine Queue.

Configuring Scan Criteria

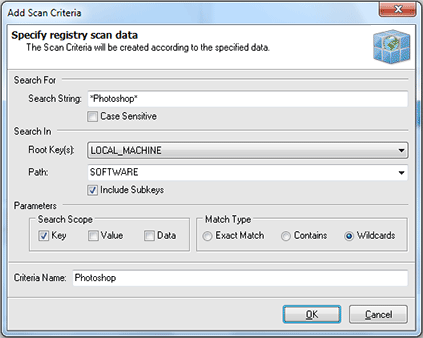

After the Machines to take part in scan are defined it is time to specify a scan criteria. All the scan criteria to match are displayed within the Scan Criteria pane. You can add as many criteria as you wish. To add a new criteria press Add button on the tool bar of the Scan Criteria pane. The Add Scan Criteria dialog will appear on the screen to specify the criteria. Pic 5

Specifying Registry Scan criteria

Pic 5. Specifying Registry Scan criteria

In the Add Scan Criteria dialog you should specify a string to search for, where to search, if the sub keys of search root are included in the search, search scope, matching rule and a name for the criteria being created. When you have defined all the parameters required press OK button to proceed.

Executing Registry Scan

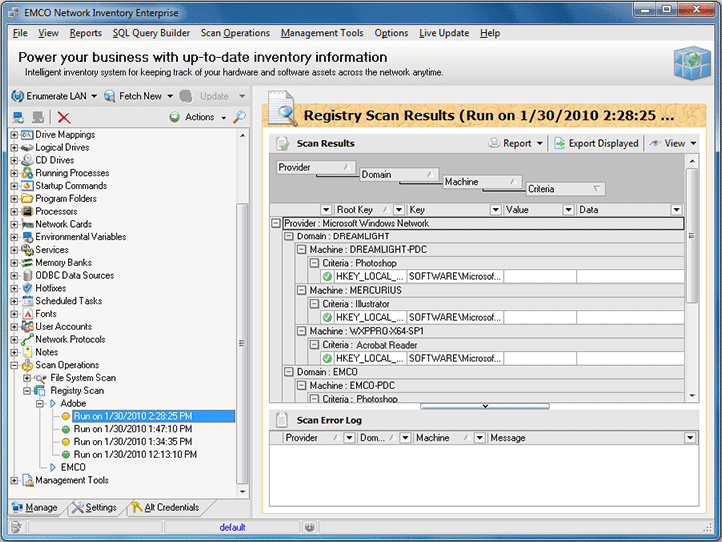

Now you have the fully configured Registry Scan and can execute it. To execute the scan press Run Now button on the tool bar of the Scan Criteria pane. The scan is now being executed and its progress is shown in the status bar. When the scan completes the result is added to the Scan Results pane. Double click the result to see the details. Pic 6

Registry Scan results

Pic 6. Registry Scan results

You have successfully created, configured and executed the Registry Scan and ready to use this feature of Network Inventory.
